AVVR聚氯乙烯軟護套線
-

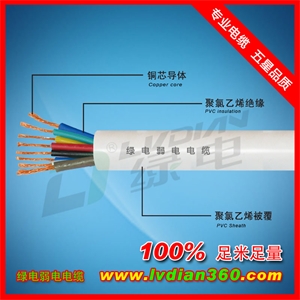

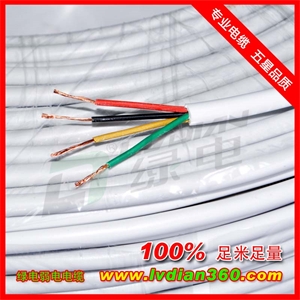

產品說明：
導體使用多支銅線絞合
聚氯乙烯絕緣
聚氯乙烯護套
額定電壓Uo/U為300/300V
長期允許工作溫度應不超過70℃

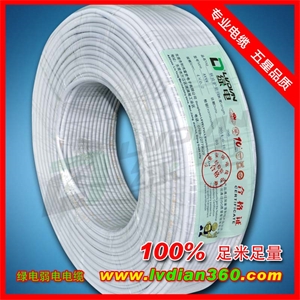

包裝規格：
200米/卷
1、應用：適用于室內電器、機械、家電產品、監控、防盜、樓宇對講、門禁考勤等
2、產品標準：國家標準、企業標準
3、產品說明：
導體使用多支銅線絞合
聚氯乙烯絕緣
聚氯乙烯護套
額定電壓Uo/U為300/300V
長期允許工作溫度應不超過70℃
4、包裝規格：200米/卷
|
型號/規格
|
芯數×標稱截面（m㎡）
|
絕緣厚度規定值 | 護套厚度規定值 |
平均外徑
|
20℃時導體電阻最大值Ω/Km
|
70℃時導體電阻最小值MΩ.Km | ||
| 下限 |
上限
|
銅芯
|
鍍錫銅芯 | |||||
|
AVVR 2×7/0.15 |
2×0.12 |
0.4 |
0.6 |
3.3 |
4.3 |
158 |
163 |
0.018 |
|
AVVR 2×12/0.15 |
2×0.20 |
0.4 |
0.6 |
3.6 |
4.7 |
92.3 |
95.0 |
0.016 |
|
AVVR 2×16/0.15 |
2×0.30 |
0.5 |
0.6 |
4.1 |
5.3 |
69.2 |
71.2 |
0.014 |
|
AVVR 3×7/0.15 |
3×0.12 |
0.4 |
0.6 |
3.4 |
4.5 |
158 |
163 |
0.016 |
|
AVVR 3×12/0.15 |
3×0.20 |
0.4 |
0.6 |
3.8 |
4.9 |
92.3 |
95.0 |
0.014 |
|
AVVR 3×16/0.15 |
3×0.30 |
0.5 |
0.6 |
4.4 |
5.7 |
69.2 |
71.2 |
0.014 |
|
AVVR 4×7/0.15 |
4×0.12 |
0.4 |
0.6 |
3.8 |
4.9 |
158 |
163 |
0.016 |
|
AVVR 4×12/0.15 |
4×0.20 |
0.4 |
0.6 |
4.2 |
5.4 |
92.3 |
95.0 |
0.014 |
|
AVVR 4×16/0.15 |
4×0.30 |
0.5 |
0.6 |
4.8 |
6.2 |
69.2 |
71.2 |
0.014 |
|
AVVR 5×7/0.15 |
5×0.12 |
0.4 |
0.6 |
4.1 |
5.3 |
158 |
163 |
0.016 |
|
AVVR 5×12/0.15 |
5×0.20 |
0.4 |
0.6 |
4.5 |
5.8 |
92.3 |
95.0 |
0.014 |
|
AVVR 5×16/0.15 |
5×0.30 |
0.5 |
0.6 |
5.3 |
6.7 |
69.2 |
71.2 |
0.014 |
|
AVVR 6×7/0.15 |
6×0.12 |
0.4 |
0.6 |
4.4 |
5.7 |
158 |
163 |
0.016 |
|
AVVR 6×12/0.15 |
6×0.20 |
0.4 |
0.6 |
4.9 |
6.3 |
92.3 |
95.0 |
0.014 |
|
AVVR 6×16/0.15 |
6×0.30 |
0.5 |
0.6 |
5.7 |
7.3 |
69.2 |
71.2 |
0.014 |
|
AVVR 7×7/0.15 |
7×0.12 |
0.4 |
0.6 |
4.4 |
5.7 |
158 |
163 |
0.016 |
|
AVVR 7×12/0.15 |
7×0.20 |
0.4 |
0.6 |
4.9 |
6.3 |
92.3 |
95.0 |
0.014 |
|
AVVR 7×16/0.15 |
7×0.30 |
0.5 |
0.6 |
5.7 |
7.3 |
69.2 |
71.2 |
0.014 |
|
AVVR 8×7/0.15 |
8×0.12 |
0.4 |
0.6 |
4.6 |
5.9 |
158 |
163 |
0.016 |
|
AVVR 8×12/0.15 |
8×0.20 |
0.4 |
0.6 |
5.1 |
6.5 |
92.3 |
95.0 |
0.014 |
|
AVVR 8×16/0.15 |
8×0.30 |
0.5 |
0.6 |
5.9 |
7.5 |
69.2 |
71.2 |
0.014 |
|
AVVR 9×7/0.15 |
9×0.12 |
0.4 |
0.6 |
4.8 |
6.1 |
158 |
163 |
0.016 |
|
AVVR 9×12/0.15 |
9×0.20 |
0.4 |
0.6 |
5.3 |
6.7 |
92.3 |
95.0 |
0.014 |
|
AVVR 9×16/0.15 |
9×0.30 |
0.5 |
0.6 |
6.3 |
8.0 |
69.2 |
71.2 |
0.014 |
|
AVVR 10×7/0.15 |
10×0.12 |
0.4 |
0.6 |
5.7 |
7.2 |
158 |
163 |
0.016 |
|
AVVR 10×12/0.15 |
10×0.20 |
0.4 |
0.6 |
6.3 |
8.0 |
92.3 |
95.0 |
0.014 |
|
AVVR 10×16/0.15 |
10×0.30 |
0.5 |
0.8 |
7.8 |
9.7 |
69.2 |
71.2 |
0.014 |
|
AVVR 12×7/0.15 |
12×0.12 |
0.4 |
0.6 |
5.8 |
7.4 |
158 |
163 |
0.016 |
|
AVVR 12×12/0.15 |
12×0.20 |
0.4 |
0.6 |
6.5 |
8.2 |
92.3 |
95.0 |
0.014 |
|
AVVR 12×16/0.15 |
12×0.30 |
0.5 |
0.8 |
8.0 |
10.1 |
69.2 |
71.2 |
0.014 |
|
AVVR 14×7/0.15 |
14×0.12 |
0.4 |
0.6 |
6.1 |
7.8 |
158 |
163 |
0.016 |
|
AVVR 14×12/0.15 |
14×0.20 |
0.4 |
, 0.8 |
7.2 |
9.1 |
92.3 |
95.0 |
0.014 |
|
AVVR 14×16/0.15 |
14×0.30 |
0.5 |
0.8 |
8.4 |
10.6 |
69.2 |
71.2 |
0.014 |
|
AVVR 16×7/0.15 |
16×0.12 |
0.4 |
0.6 |
6.5 |
8.2 |
158 |
163 |
0.016 |
|
AVVR 16×12/0.15 |
16×0.20 |
0.4 |
0.8 |
7.6 |
9.6 |
92.3 |
95.0 |
0.014 |
|
AVVR 16×16/0.15 |
16×0.30 |
0.5 |
0.8 |
8.9 |
11.1 |
69.2 |
71.2 |
0.014 |
|
AVVR 18×7/0.15 |
18×0.12 |
0.4 |
0.8 |
7.2 |
9.1 |
158 |
163 |
0.016 |
|
AVVR 18×12/0.15 |
18×0.20 |
0.4 |
0.8 |
8.1 |
10.1 |
92.3 |
95.0 |
0.014 |
|
AVVR 18×16/0.15 |
18×0.30 |
0.5 |
0.8 |
9.4 |
11.7 |
69.2 |
71.2 |
0.014 |
|
AVVR 18×16/0.20 |
18×0.50 |
0.5 |
1.0 |
10.5 |
12.9 |
48.2 |
49.6 |
0.013 |
|
AVVR 20×7/0.15 |
20×0.12 |
0.4 |
0.8 |
7.8 |
9.7 |
158 |
163 |
0.016 |
|
AVVR 20×12/0.15 |
20×0.20 |
0.4 |
0.8 |
8.9 |
11.0 |
92.3 |
95.0 |
0.014 |
|
AVVR 20×16/0.15 |
20×0.30 |
0.5 |
0.8 |
10.2 |
12.5 |
69.2 |
71.2 |
0.014 |
|
AVVR 16×16/0.20 |
20×0.50 |
0.5 |
1.0 |
11.5 |
13.9 |
48.2 |
49.6 |
0.013 |
|
AVVR 24×7/0.15 |
24×0.12 |
0.4 |
0.8 |
8.4 |
10.6 |
158 |
163 |
0.016 |
|
AVVR 24×12/0.15 |
24×0.20 |
0.4 |
0.8 |
9.4 |
11.7 |
92.3 |
95.0 |
0.014 |
|
AVVR 24×16/0.15 |
24×0.30 |
0.5 |
1.0 |
11.4 |
14.2 |
69.2 |
71.2 |
0.014 |
