電源護套線
-
產品說明：

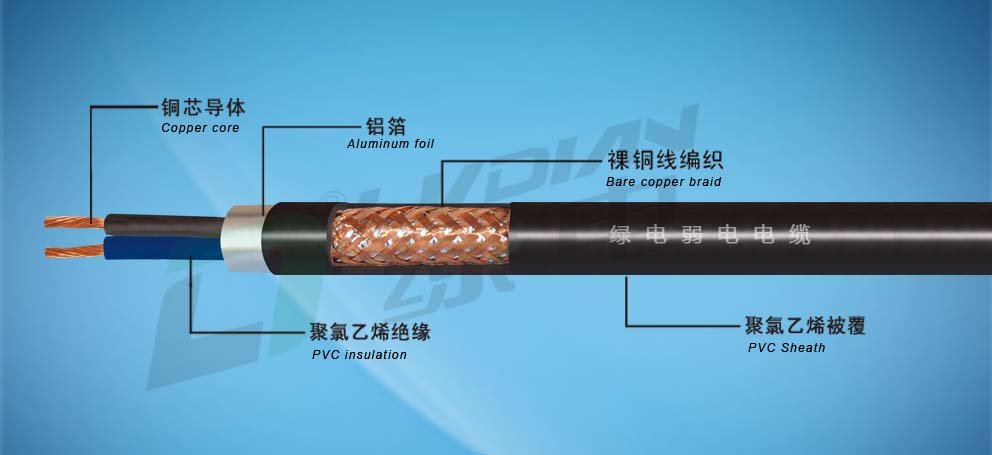

導體使用多支銅線絞合
裸銅或鍍錫銅編織屏蔽
聚氯乙烯絕緣
聚氯乙烯護套
額定電壓Uo/U為300/300V
長期允許工作溫度應不超過70℃
包裝規格：

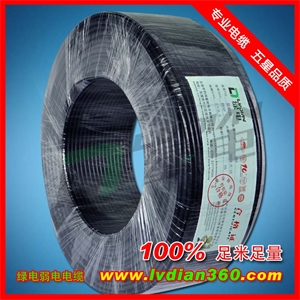

200米/卷(包裝規格可根據客戶要求更改)

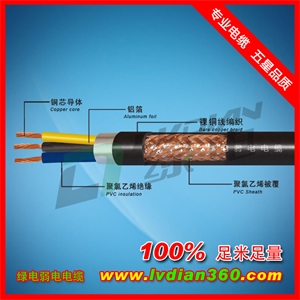

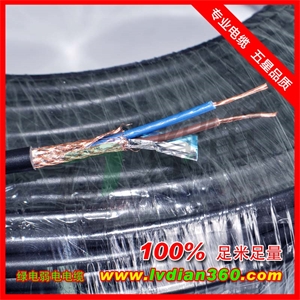

RVVP聚氯乙烯絕緣屏蔽聚氯乙烯護套軟電線
1、應用：適用于視頻信號、門禁考勤、樓宇對講、通訊音頻、廣播音響系統、儀表、電子設備及自動化設備、抗干擾線路屏蔽
2、生產標準：國家標準、企業標準
3、技術參數：
導體使用多支銅線絞合
裸銅或鍍錫銅編織屏蔽
聚氯乙烯絕緣
聚氯乙烯護套
額定電壓Uo/U為300/300V
長期允許工作溫度應不超過70℃
4、包裝規格： 200米/卷(包裝規格可根據客戶要求更改)
RVVP 6×48/0.20
|
型號/規格
|
芯數×標稱截面（m㎡） | 絕緣厚度規定值 | 護套厚度規定值 |
編織屏蔽密度≥%
|
平均外徑
|
20℃時導體電
阻最大值Ω/Km |
70℃時導體電阻最小值MΩ.Km
|
|
|
上限
|
下限
|
|||||||
|
RVVP 2×7/0.15 |
2×0.12 |
0.4 |
0.6 |
80 |
3.7 |
4.9 |
158 |
0.016 |
|
RVVP 2×12/0.15 |
2×0.20 |
0.4 |
0.6 |
80 |
4.1 |
5.3 |
92.3 |
0.013 |
|
RVVP 2×16/0.15 |
2×0.30 |
0.5 |
0.6 |
80 |
4.8 |
6.2 |
69.2 |
0.014 |
|
RVVP 2×28/0.15 |
2×0.50 |
0.5 |
0.6 |
80 |
5.3 |
6.8 |
39.0 |
0.012 |
|
RVVP 2×24/0.20 |
2×0.75 |
0.5 |
0.6 |
80 |
5.8 |
7.4 |
26.0 |
0.010 |
|
RVVP 2×32/0.20 |
2×1.00 |
0.6 |
0.6 |
80 |
6.4 |
8.2 |
19.5 |
0.010 |
|
RVVP 2×48/0.20 |
2×1.50 |
0.6 |
0.8 |
80 |
7.3 |
9.2 |
13.3 |
0.009 |
|
RVVP 2×78/0.20 |
2×2.50 |
0.7 |
0.8 |
80 |
8.5 |
10.5 |
7.98 |
0.008 |
|
RVVP 3×7/0.15 |
3×0.12 |
0.4 |
0.6 |
80 |
3.9 |
5.1 |
158 |
0.016 |
|
RVVP 3×12/0.15 |
3×0.20 |
0.4 |
0.6 |
80 |
4.5 |
5.8 |
92.3 |
0.013 |
|
RVVP 3×16/0.15 |
3×0.30 |
0.5 |
0.6 |
80 |
5.1 |
6.5 |
69.2 |
0.014 |
|
RVVP 3×28/0.15 |
3×0.50 |
0.5 |
0.6 |
80 |
5.6 |
7.1 |
39.0 |
0.012 |
|
RVVP 3×24/0.20 |
3×0.75 |
0.5 |
0.6 |
80 |
6.1 |
7.8 |
26.0 |
0.010 |
|
RVVP 3×32/0.20 |
3×1.00 |
0.6 |
0.8 |
80 |
7.2 |
9.1 |
19.5 |
0.010 |
|
RVVP 3×48/0.20 |
3×1.50 |
0.6 |
0.8 |
80 |
8.0 |
10.0 |
13.3 |
0.009 |
|
RVVP 3×78/0.20 |
3×2.50 |
0.7 |
0.9 |
80 |
9.1 |
11.1 |
7.98 |
0.008 |
|
RVVP 4×7/0.15 |
4×0.12 |
0.4 |
0.6 |
80 |
4.5 |
5.8 |
158 |
0.016 |
|
RVVP 4×12/0.15 |
4×0.20 |
0.4 |
0.6 |
80 |
4.9 |
6.2 |
92.3 |
0.013 |
|
RVVP 4×16/0.15 |
4×0.30 |
0.5 |
0.6 |
80 |
5.5 |
7.0 |
69.2 |
0.014 |
|
RVVP 4×28/0.15 |
4×0.50 |
0.5 |
0.7 |
80 |
5.8 |
7.8 |
39.0 |
0.012 |
|
RVVP 4×24/0.20 |
4×0.75 |
0.5 |
0.7 |
80 |
6.6 |
8.6 |
26.0 |
0.010 |
|
RVVP 4×32/0.20 |
4×1.00 |
0.6 |
0.8 |
80 |
7.4 |
9.4 |
19.5 |
0.010 |
|
RVVP 4×48/0.20 |
4×1.50 |
0.6 |
0.8 |
80 |
8.4 |
10.4 |
13.3 |
0.009 |
|
RVVP 4×78/0.20 |
4×2.50 |
0.7 |
0.9 |
80 |
10.2 |
12.2 |
7.98 |
0.008 |
|
RVVP 5×7/0.15 |
5×0.12 |
0.4 |
0.6 |
80 |
4.8 |
6.2 |
158 |
0.016 |
|
RVVP 5×12/0.15 |
5×0.20 |
0.4 |
0.6 |
80 |
5.3 |
6.7 |
92.3 |
0.013 |
|
RVVP 5×16/0.15 |
5×0.30 |
0.5 |
0.6 |
80 |
6.0 |
7.6 |
69.2 |
0.014 |
|
RVVP 5×28/0.15 |
5×0.50 |
0.5 |
0.8 |
80 |
6.2 |
8.2 |
39.0 |
0.012 |
|
RVVP 5×24/0.20 |
5×0.75 |
0.5 |
0.8 |
80 |
7.3 |
9.3 |
26.0 |
0.010 |
|
RVVP 5×32/0.20 |
5×1.00 |
0.6 |
0.9 |
80 |
8.0 |
10.0 |
19.5 |
0.010 |
|
RVVP 5×48/0.20 |
5×1.50 |
0.6 |
1.0 |
80 |
9.4 |
11.4 |
13.3 |
0.009 |
|
RVVP 5×78/0.20 |
5×2.50 |
0.7 |
1.1 |
80 |
11.7 |
13.7 |
7.98 |
0.008 |
|
RVVP 6×7/0.15 |
6×0.12 |
0.4 |
0.6 |
80 |
5.2 |
6.6 |
158 |
0.016 |
|
RVVP 6×12/0.15 |
6×0.20 |
0.4 |
0.6 |
80 |
5.7 |
7.2 |
92.3 |
0.013 |
|
RVVP 6×16/0.15 |
6×0.30 |
0.5 |
0.6 |
80 |
6.5 |
8.2 |
69.2 |
0.014 |
|
RVVP 6×28/0.15 |
6×0.50 |
0.5 |
0.8 |
80 |
7.0 |
9.0 |
39.0 |
0.012 |
|
RVVP 6×24/0.20 |
6×0.75 |
0.5 |
1.8 |
80 |
8.4 |
10.4 |
26.0 |
0.010 |
|
RVVP 6×32/0.20 |
6×1.00 |
0.6 |
1.0 |
80 |
9.3 |
11.3 |
19.5 |
0.010 |
|
RVVP 6×48/0.20 |
6×1.50 |
1.0 |
80 |
10.8 |
12.8 |
13.3 |
0.009 |
|
|
RVVP 6×78/0.20 |
6×2.50 |
0.8 |
1.2 |
80 |
12.7 |
14.7 |
7.98 |
0.008 |
|
RVVP 7×7/0.15 |
7×0.12 |
0.4 |
0.6 |
80 |
5.2 |
6.6 |
158 |
0.016 |
|
RVVP 7×12/0.15 |
7×0.20 |
0.4 |
0.6 |
80 |
5.7 |
7.2 |
92.3 |
0.013 |
|
RVVP 7×16/0.15 |
7×0.30 |
0.5 |
0.6 |
80 |
6.5 |
8.2 |
69.2 |
0.014 |
|
RVVP 7×28/0.15 |
7×0.50 |
0.5 |
0.8 |
80 |
7.3 |
9.3 |
39.0 |
0.012 |
|
RVVP 8×7/0.15 |
8×0.12 |
0.4 |
0.6 |
80 |
5.1 |
7.1 |
158 |
0.016 |
|
RVVP 8×12/0.15 |
8×0.20 |
0.4 |
0.6 |
80 |
5.6 |
7.6 |
92.3 |
0.013 |
|
RVVP 8×16/0.15 |
8×0.30 |
0.5 |
0.6 |
80 |
6.7 |
8.7 |
69.2 |
0.014 |
|
RVVP 8×28/0.15 |
8×0.50 |
0.5 |
0.8 |
80 |
7.9 |
9.9 |
39.0 |
0.012 |
|
RVVP 8×24/0.20 |
8×0.75 |
0.5 |
0.9 |
80 |
9.4 |
11.4 |
26.0 |
0.010 |
|
RVVP 8×32/0.20 |
8×1.00 |
0.6 |
1.0 |
80 |
1.04 |
12.5 |
19.5 |
0.010 |
|
RVVP 8×48/0.20 |
8×1.50 |
0.6 |
1.0 |
80 |
12.7 |
14.7 |
13.3 |
0.009 |
|
RVVP 10×7/0.15 |
10×0.12 |
0.4 |
0.6 |
80 |
6.4 |
8.1 |
158 |
0.016 |
|
RVVP 10×12/0.15 |
10×0.20 |
0.4 |
0.6 |
80 |
7.4 |
9.3 |
92.3 |
0.013 |
|
RVVP 10×16/0.15 |
10×0.30 |
0.5 |
0.6 |
80 |
8.7 |
10.9 |
69.2 |
0.014 |
|
RVVP 10×28/0.15 |
10×0.50 |
0.5 |
0.8 |
80 |
8.9 |
10.9 |
39.0 |
0.012 |
|
RVVP 10×24/0.20 |
10×0.75 |
0.5 |
0.9 |
80 |
10.3 |
12.4 |
26.0 |
0.010 |
|
RVVP 10×32/0.20 |
10×1.00 |
0.6 |
1.0 |
80 |
12.6 |
14.6 |
19.5 |
0.010 |
|
RVVP 10×48/0.20 |
10×1.50 |
0.6 |
1.0 |
80 |
13.6 |
15.6 |
13.3 |
0.009 |
|
RVVP 12×7/0.15 |
12×0.12 |
0.4 |
0.6 |
80 |
6.6 |
8.3 |
158 |
0.016 |
|
RVVP 12×12/0.15 |
12×0.20 |
0.4 |
0.6 |
80 |
7.6 |
9.6 |
92.3 |
0.013 |
|
RVVP 12×16/0.15 |
12×0.30 |
0.5 |
0.6 |
80 |
9.0 |
11.2 |
69.2 |
0.014 |
|
RVVP 12×28/0.15 |
12×0.50 |
0.5 |
0.9 |
80 |
9.5 |
11.5 |
39.0 |
0.012 |
|
RVVP 12×24/0.20 |
12×0.75 |
0.6 |
1.0 |
80 |
12.6 |
14.6 |
26.0 |
0.010 |
|
RVVP 12×32/0.20 |
12×1.00 |
0.7 |
1.1 |
80 |
13.6 |
15.6 |
19.5 |
0.010 |
|
RVVP 12×48/0.20 |
12×1.50 |
0.7 |
1.1 |
80 |
15.2 |
17.2 |
13.3 |
0.009 |
|
RVVP 16×7/0.15 |
16×0.12 |
0.4 |
0.6 |
80 |
7.6 |
9.5 |
158 |
0.016 |
|
RVVP 16×12/0.15 |
16×0.20 |
0.4 |
0.6 |
80 |
8.6 |
10.8 |
92.3 |
0.013 |
|
RVVP 16×16/0.15 |
16×0.30 |
0.5 |
0.6 |
80 |
9.9 |
12.3 |
69.2 |
0.014 |
